BROWN FUSED ALUMINUM OXIDE
Advantages
- 고품질의 Bauxite 를 높은 온도에서 용융하여 생산
- 불투명한 결정체이며 경도가 매우 높다
- Good self-sharpening
Applications
- 테프론,세라믹,Thermal spray coating 전처리

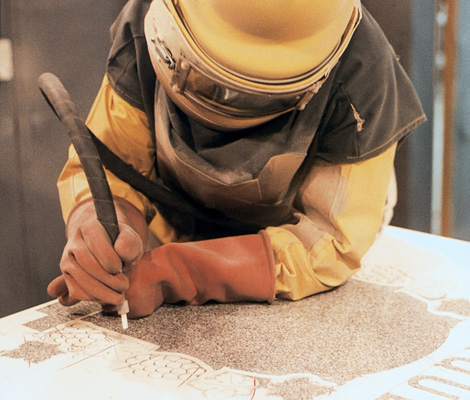

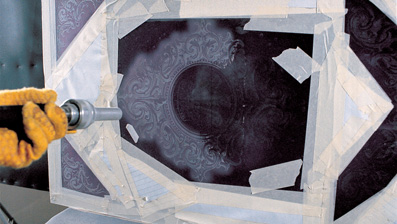

- 유리에칭(Glass Etching Or Frosting)

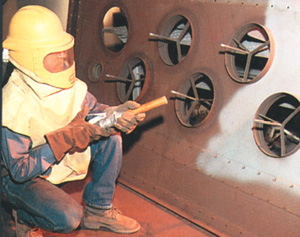

- 녹, Hard Oxide(titanium, Zirconium etc) 제거
- Investments Castings cleaning
- Aircraft Engine Overhaul
Chemical Analysis
| Grits Range | Chemical Composition | ||
|---|---|---|---|
| AI2O3 | TiO2 | CaO | |
| F4 - F80 | 95.00 - 97.50 | 1.5 - 3.80 | = 0.45 |
| F90 - F150 | 94.00 - 97.50 | ||
| F180 - F220 | 93.00 - 97.50 | ||
| F220 Finer | = 92.0 | ||
Physical Analysis
| Crystal | True Density g/cm3 | Bulk Density g/cm3 | Hardness kg/mm2 | Melting Pointing | Max Usable Temperature |
|---|---|---|---|---|---|
| a - AI21O3 | = 3.90 | 1.40 - 1.85 | 2000 - 2200 | 2000 oC | 1900 oC |
Range Of Grain Size
| Grit size Number | Nominal particle size Range | Grit size Number | Nominal particle size Range |
|---|---|---|---|
| F4 | 5600 - 4750 | F80 | 212 - 180 |
| F5 | 4750 - 4000 | F90 | 180 - 150 |
| F6 | 4000 - 3350 | F100 | 150 - 125 |
| F7 | 3350 - 2800 | F120 | 125 - 106 |
| F8 | 2800 - 2360 | F150 | 106 - 75 |
| F10 | 2360 - 2000 | F180 | 90 - 63 |
| F12 | 2000 - 1700 | F220 | 75 - 53 |
| F14 | 1700 - 1400 | F230 | 53 ± 3.0 |
| F16 | 1400 - 1180 | F240 | 44.5 ± 2.0 |
| F20 | 1180 - 1000 | F280 | 36.5 ± 1.5 |
| F22 | 1000 - 850 | F320 | 29.2 ± 1.5 |
| F24 | 850 - 710 | F360 | 22.8 ± 1.5 |
| F30 | 710 - 600 | F400 | 17.3 ± 1.0 |
| F36 | 600 - 500 | F500 | 12.8 ± 1.0 |
| F40 | 500 - 425 | F600 | 9.3 ± 1.0 |
| F46 | 425 - 355 | F800 | 6.5 ± 1.0 |
| F54 | 355 - 300 | F1000 | 4.5 ± 0.8 |
| F60 | 300 - 250 | F1200 | 3.0 ± 0.5 |
| F70 | 250 - 212 |
